LAMINATED GLASS

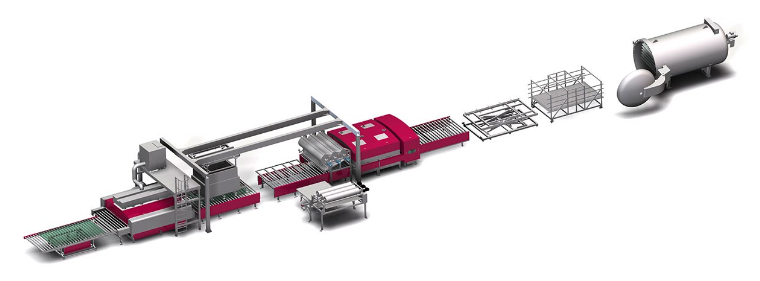

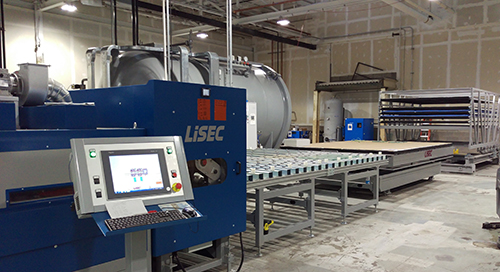

Syracuse Glass SECURIVUE® custom laminated glass is fabricated using a state of the art laminating plant manufactured entirely by Lisec, which includes:

  • A glass washer with soft coat low e capability,

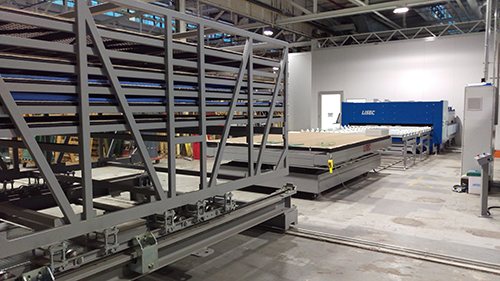

  • A lay-up facility with a spider crane for precise positioning of glass plies, even in big sizes
  • A clean room, by SBB Inc., to ensure cleanliness, good adhesion, and an ideal climate control environment for the interlayer materials
  • A heating oven with both infrared radiation AND forced convection heat source capability, precise controls, and precision pressure “nip” rollers

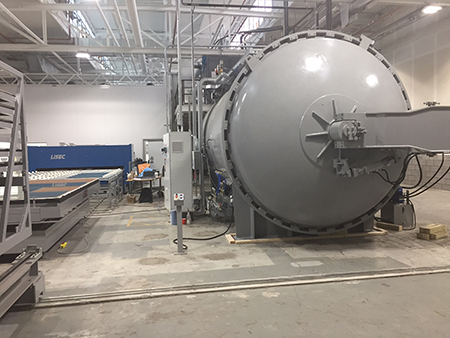

  • A pressure vessel (autoclave) expressly designed for finishing traditionally difficult laminates with tempered glass, coated glass, holes and notches, by employing precise heating and controlled cooling

Additionally, Syracuse Glass has a Lisec laminated glass cutting line for cutting of annealed laminated glass of fine dimensional accuracy and glass edge condition.
GLASS OPTIONS include clear, tinted, coated, low iron, acid etched


INTERLAYER OPTIONS are PVB and Kuraray Sentry Glass ionoplast, the best option for exterior exposed edge applications like railings and canopies, or where additional structural strength is desired








TYPICAL APPLICATIONS for laminated glass include:

  • Glazing in Openings Requiring Safety Glazing in the Building Codes
  • Noise Reduction
  • UV Protection
  • Security
  • Inboard Lights in Insulating Units in Skylights or Sloped Glazing
  • Blast Resistance
  • Wind/Hurricane/ Windborne Debris Protection
  • Glass Guards and Railings
  • Canopies


CERTIFICATIONS  are made by SGC to:

  • ASTM C 1172 Standard Specification for Laminated Architectural Flat Glass
  • CPSC 16 CFR 1201 Safety Standard for Architectural Glass
  • ANSI Z97.1 American National Standard for Safety Glazing Materials Used in Buildings
  • CAN/ CGBS 12.1 M 90 National Standard of Canada- Tempered or Laminated Safety Glass


Syracuse Glass Company is a licensee of the Safety Glazing Certification Council (SGCC).  SGCC certified products are indicated by a certification number permanently marked on the product.



LATEST NEWS

SYRACUSE GLASS IN THE NEWS
Syracuse Glass was featured by the Syracuse Post Standard in an article about the redevelopment of the former General Motors Plant in Syracuse.

We’re proud to be part of the Salina Industrial Power Park, a reuse of one of Upstate New York’s great industrial facilities.

click the links below to see the articles

Web Article link

PDF Article Version



IDENTIFICATION INFORMATION ON GLASS PRODUCTS !

Check out our Tempered Glass Logos or our Insulating Glass Spacers.

Many of our products have three numbers – the order number, line number, and piece number.  This permanent label is applied by a laser, with unique identification information from our powerful FENEVISION software.

With this information, one can determine the exact size, exact glass make-up, the delivery date, or pricing - either by contacting our office, or from our website directly – even at a job site using a smart phone!

**************************

TEMPERED GLASS THAT REFLECTS WELL ON YOU!

Our new state-of-the-art Glaston FC-500 tempering furnace makes the flattest, best looking tempered glass available anywhere! We are the second glass fabricator in the nation to install this new technology.

In addition to the full convection and precise computer controls engineered into this furnace by industry leader Glaston of Finland, we’ve added a Lite Sentry optical distortion measurement scanner. Each piece we produce is photographed and evaluated for deviation from flatness on line, in real time, and the results are immediately displayed for our furnace operators.

As a result, we can fine tune the furnace settings, and produce very flat tempered glass, even glass with high performance solar control low emissivity coatings, which are very challenging to heat evenly because of the way the coatings reflect heat energy.

We’re serious about producing high quality tempered glass. In 2002, Syracuse Glass bought a UNIGLASS full convection tempering furnace, the second in the US, and the first full convection furnace in our market area, and now also featuring a Lite Sentry scanning device. We continue to invest and improve our processes to maintain the quality advantage that we’ve earned over the years.



**************************

ADVANCE SHIPPING NOTICES AVAILABLE

Advance Shipping Notices are available, by email or by fax, to notify you immediately after our truck is loaded the night prior to delivery, of all the materials to expect on the truck.

Phone or email Rick Pulver in our office at extension 52 or rpulver@syracuseglass.com if you’d like to be enrolled in this program.
